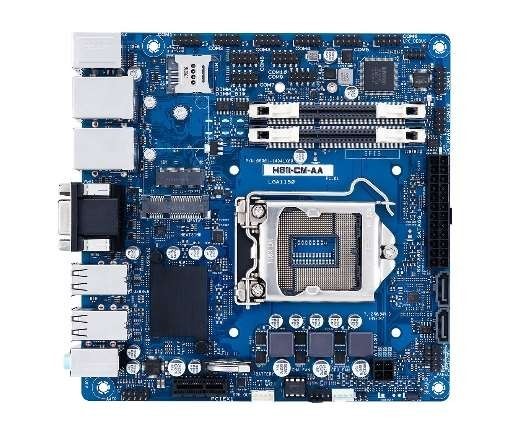

H81I-CM-AA 来源：艾能捷发表日期：2021-11-15 [返回] 浏览量：

特性

规范

处理器系统	CPU	Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™
	CPU	i3/Pentium®/Celeron® Processors supports 22nm CPU
	CHIPSET	Intel® H81 chipset
内存	Technology	DDR3L 1600/1333/1066 MHz
	Max.	16GB
	Socket	2 x SO-DIMM
显示	D-Sub	2, Supports up to 1920 X 1200 @ 60 Hz
显示	Multi Display	D-Sub+D-Sub
扩展槽	PCIe	1 x PCIe 2.0 x 1 slot
	Mini PCIe	1 x full mini-PCIe
	mSATA	1 x full/half mSATA
	M.2	1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device
	M.2	1 x SIM Card Slot
以太网	Speed	10/100/1000Mbps
	Controller	2 x Realtek® 8111H
	Connector	2 x RJ-45
音频	Codec	Realtek ALC887-VD2 High Definition Audio
音频	Connector	Line-Out, Line-In, Mic-In
存储	SATA port	2 x SATA Gen 3.0, up to 6Gb/s
存储	mSATA	1 x mSATA 3Gb/s
后置I/O	D-Sub	2
	USB3.2 Gen1	6
	USB 2.0	8
	Ethernet	2
	Audio jack	3
	PS/2 COMBO	1
内部连接	Serial Port	12 (RS232)
	CPU Fan Connector	1 (PWM Mode)
	Chassis Fan Header	1 (PWM Mode)
	Chassis Intrusion Header	1
	Front Panel Audio Header	1
	(AAFP)	1
	System Panel Header	1(10-1 Pin)
	Clear CMOS Jumper	1
	Speaker Header	1(4-pin)
	LPC Debug Header	1
	Speaker out Header	1 (With speaker AMP IC, 3W)
	AT/ATX select header	1
	Power Connector	1 X 4-pin ATX 12V Power Connector, 1 X 24-pin EATX Power Connector
电源	Power Type	both ATX/AT Mode
操作系统	Microsoft Windows	Windows® 7
操作系统	Linux	Ubuntu 16.04
环境	Operating Temperature	0~50° C
	Non-Operating Temperature	-40~85° C
	Relative Humidity	5%~95%
尺寸	Form Factor	Mini-ITX, 170 x 170 mm
认证	Safety	CE, FCC
