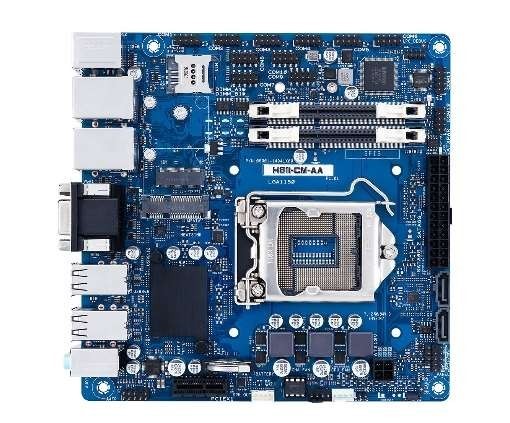

Processor System
|
CPU
|
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™
|
|
i3/Pentium®/Celeron®
Processors supports 22nm CPU
|
|
CHIPSET
|
Intel® H81 chipset
|
|
Memory
|
Technology
|
DDR3L 1600/1333/1066 MHz
|
|
Max.
|
16GB
|
|
Socket
|
2 x SO-DIMM
|
|
Display
|
D-Sub
|
2, Supports up to 1920 X 1200 @ 60 Hz
|
|
Multi Display
|
D-Sub+D-Sub
|
|
Expansion Slot
|
PCIe
|
1 x PCIe 2.0 x 1 slot
|
|
Mini PCIe
|
1 x full mini-PCIe
|
|
mSATA
|
1 x full/half mSATA
|
|
M.2
|
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device
|
|
1 x SIM Card Slot
|
|
Ethernet
|
Speed
|
10/100/1000Mbps
|
|
Controller
|
2 x Realtek® 8111H
|
|
Connector
|
2 x RJ-45
|
|
Audio
|
Codec
|
Realtek ALC887-VD2 High Definition Audio
|
|
Connector
|
Line-Out, Line-In, Mic-In
|
|
Storage
|
SATA port
|
2 x SATA Gen 3.0, up to 6Gb/s
|
|
mSATA
|
1 x mSATA 3Gb/s
|
|
Rear I/O
|
D-Sub
|
2
|
|
USB3.2 Gen1
|
6
|
|
USB 2.0
|
8
|
|
Ethernet
|
2
|
|
Audio jack
|
3
|
|
PS/2 COMBO
|
1
|
|
Internal
Connector
|
Serial Port
|
12 (RS232)
|
|
CPU Fan Connector
|
1 (PWM Mode)
|
|
Chassis Fan Header
|
1 (PWM Mode)
|
|
Chassis Intrusion Header
|
1
|
|
Front Panel Audio Header
|
1
|
|
(AAFP)
|
|
System Panel Header
|
1(10-1 Pin)
|
|
Clear CMOS Jumper
|
1
|
|
Speaker Header
|
1(4-pin)
|
|
LPC Debug Header
|
1
|
|
Speaker out Header
|
1 (With speaker AMP IC, 3W)
|
|
AT/ATX select header
|
1
|
|
Power Connector
|
1 X 4-pin ATX 12V Power Connector, 1 X 24-pin EATX Power Connector
|
|
Power
|
Power Type
|
both ATX/AT Mode
|
|
Operating System
|
Microsoft Windows
|
Windows® 7
|
|
Linux
|
Ubuntu 16.04
|
|
Environment
|
Operating Temperature
|
0~50° C
|
|
Non-Operating Temperature
|
-40~85° C
|
|
Relative Humidity
|
5%~95%
|
|
Dimension
|
Form Factor
|
Mini-ITX, 170 x 170 mm
|
|
Certification
|
Safety
|
CE, FCC
|
