Features
• Supports up to 3 display configuration by multiple interface: Dual DP/HDMI/D-SUB
• Wide temperature range endurance: 0~60 °C
• 3-year warranty
Specifications
Processor System
CPU
LGA1151 socket for 9th/8th Generation Intel® Core™ i9/ i7/ i5/ i3/Pentium®/Celeron®
Processors
Chipset
Intel® Q370 Chipset
Memory
Technology
DDR4 2666/2400/2133MHz
Max.
64GB
Socket
4 x U-DIMM
Display
Controller
Intel UHD Graphics 630/610
HDMI
1, Supports HDMI 1.4 up to 4096 x 2160 @ 24Hz / 2560 x 1600 @
60Hzz
Display Port
2, Supports DP 1.2a up to 4096 x 2304 @ 60 Hz
D-Sub
1, Supports up to 1920 x 1200 @ 60Hz
Multi Display
Dual DP +HDMI+D-SUB, DP+HDMI+D-SUB, Dual DP+HDMI, Dual DP+D-SUB,
Expansion Slot
PCIe
1 x PCI Express 3.0/2.0 x16
2 x PCI Express 3.0/2.0 x1
1 x PCI
M.2
2 x M.2 Socket with M Key, type 2242/2260/2280 storage devices
with IRST support(1@ SATA* & PCIE mode), SATA mode share with SATA6G_2.
Ready for Intel® Optane Memory
1 x M.2 Socket with E Key,
type 2230 Wi-Fi devices support
Ethernet
Speed
10/100/1000Mbps
Controller
1 x Intel® I219LM, supports WOL/PXE
Connector
1 x RJ-45
Audio
Codec
Realtek® ALC887 8-channel High Definition Audio CODEC
Connector
Line-in, Line-out, Mic-in
Storage
SATA port
6 x SATA 6.0 Gb/s ports (gray), support Raid 0,1,5,10

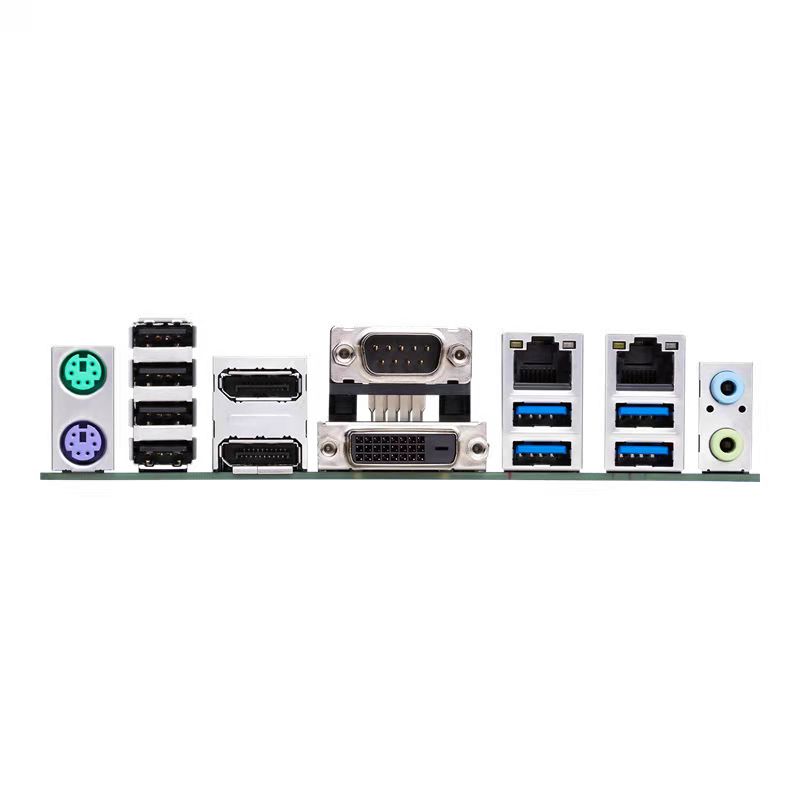

Rear I/O
PS/2
1 x Keyboard (Purple), 1 x Mouse port (Green)
DisplayPort
2
HDMI
1
D-SUB
1
Ethernet
1
USB
USB 3.2 Gen 2 (TypeA)x 1, USB 2.0 (TypeA) x 2
Audio
3 Audio jacks support 8 channel
Internal
Connector
Serial Port
2 (2 x RS 232)
USB 3.2 Gen 1
2, support additional 4 x USB 3.2 Gen 1 connectors
USB2.0
1, support additional 2 x USB2.0 connectors
Fan header
1CPU fan x 1, Chassis fan x 2
Chassis intrusion header
1
Front panel audio header
(AAFP)
1
System panel header
1
Clear CMOS jumper
1
LPC Debug header
1
LPT port header
1
Power connector
1 x 24-pin ATX Power connector, 1 x 8-pin ATX 12V Power connector
Internal
Connector
Speaker connector
1
MONO-out header
1 (with AMP IC)
DIS ME jumper
1
Watchdog timer
H/W
No
Security
TPM
TPM 2.0 IC Onboard (NPCT750)
Power
Power Type
ATX power
Operating System
Microsoft Windows
Windows® 10 (64bit ) / Win10 IoT Enterprise
Linux
Ubuntu, RedHat Enterprise, Fedora Workstation
Environment
Operating Temperature
0~60° C
Non-Operating Temperature
-40~85° C
Dimension
Form Factor
Micro ATX, 9.6 x 9.6 inches (24.4 x 24.4 cm)
Certification
EMI & Safety
CE, FCC
