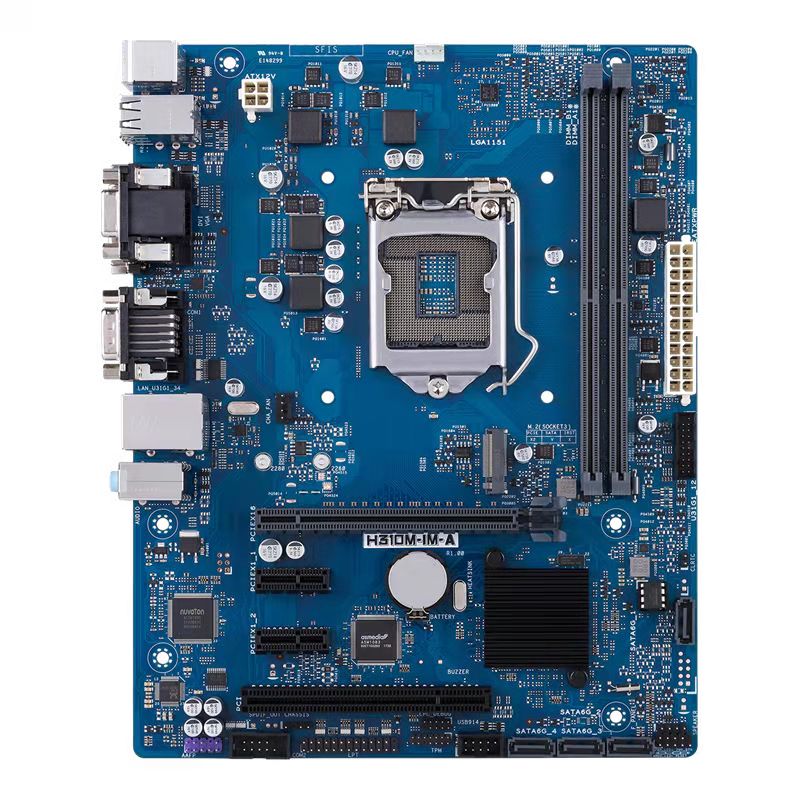

ASUS MB- H310M-IM-A
Resourch: ENERGYUNI-IPC Platform AddDate: 2021-11-16 [back] Views:
Features
• Two DIMM up to 32GB DDR4 2666/2400/2133 MHz SDRAM.
• Supports 2 displays configuration by multiple interface: 1 x DVI-D, 1x D-Sub
• Wide temperature range endurance: 0~60°C
• 3-year warranty
Specifications
Processor System CPU LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors supports 14nm CPU. MAX. SPEED 4.9GHz eight core L2 Cache 12MB CHIPSET Integrated Memory DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory Technology *DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-
core or higher processors. Max. 32GB Socket 2 x U-DIMM Display Controller Intel UHD Graphics 630/610 DVI-D 1, Supports 1920 x 1200 @60 Hz D-sub 1, Supports 1920 x 1200 @60 Hz DVI-D+D-sub Multi Display Multi-VGA output support :DVI-D/D-sub ports
Supports up to 2 displays simultaneous under OS Expansion Slot PCIe 1x PCIe x16 2x PCIe 2.0 x1 M.2 1 x M.2 socket 3 with M key, type 2260/2280 storage devices support both SATA* & PCIe x2 mode Ethernet Speed 10/100/1000Mbps Controller 1 x Realtek RTL8111H Gb Lan Connector 1 x RJ-45 Audio Codec Realtek ALC887-VD2 High Definition Audio CODEC Connector Line-out, Line-in, Mic-in Storage SATA port 4x SATA Gen 3.0, up to 6Gb/s Rear I/O DVI-D 1 D-sub 1 USB 2x USB3.2 Gen1 Type-A ports, 4xUSB 2.0 Type-A ports Ethernet 1 COM port 1 (RS-232 port) P/S2 1 x keyboard port, 1 x mouse port Internal Connector Serial Port 1 (RS-232 header) USB3.2 Gen1 Type A header 1, support additional 2 x USB3.2 Gen1 connectors USB2.0 header 1, support additional 2 x USB2.0 connectors Chassis fan header 1 Chassis intrusion header 1 Front panel audio header (AAFP) 1 System panel header 1 Clear CMOS header 1 Speaker connector 1 Parallel connector 1 LPC Debug header 1 LPC TPM header 1 Power Connector 1 x 24-pin EATX Power connector,1 x 4-pin EATX 12V Power connector Watching Timer SW Yes Security TPM LPC TPM header Power Power Type ATX Power Operating System Microsoft Windows Windows® 10 (64bit ) / Win10 Iot Enterprise Linux Ubuntu, RedHat Enterprise, Fedora Workstation Environment Operating Temperature 0~60° C Non-Operating Temperature -40~85° C Dimension Form Factor Micro-ATX”, 244cm x 193mm Certification EMI & Safety CE, FCC
